Wood Wool Machine
Turn Raw Logs Into High-Value Wood Wool & Excelsior
【Feed Size】： Log Length 300-500mm, Max Diameter ≤160mm
【Capacity】： 50-150 KG/h
【Application】： Ideal for animal bedding, craft packing, wood-wool acoustic boards, and firelighters.
【Output Size】：Width 1-10mm, Thickness 0.1-1mm
Technique Principle
Also known as an Excelsior Cutting Machine or Wood Silk Mill, the Guoyu Wood Wool Machine is purpose-built to transform fresh logs into premium, uniform wood strands. Unlike standard crushers that produce irregular chips, our equipment is specifically designed to create clean, high-quality excelsior with intact wood fibers, making it the perfect raw material for high-end commercial use.

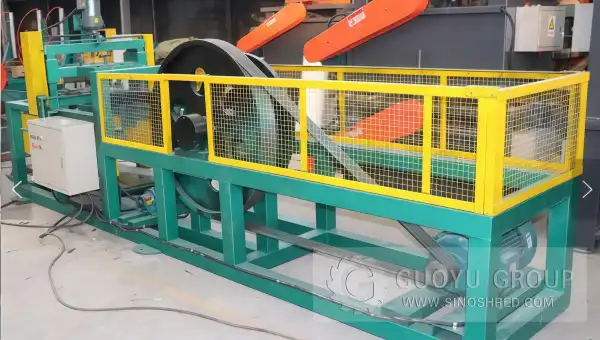

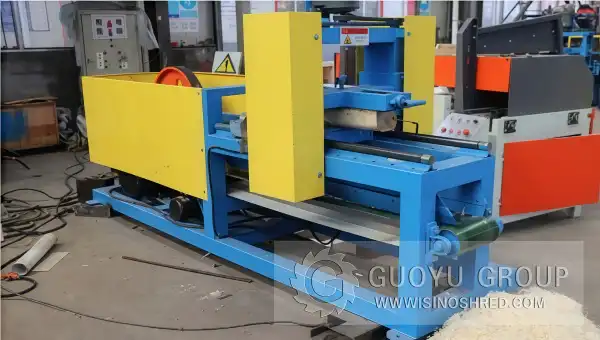

To accommodate different production scales, we offer two versatile models: the standard 500-1 and the high-yield 500-2. Whether you are a startup requiring 50-100 KG/h or a larger facility needing 100-150 KG/h with double-log processing capabilities, we have the right configuration for your business. Powered by robust motors (ranging from 7.5KW up to 15KW main power), our machines guarantee stable, continuous operation even during heavy-duty production cycles.
The superior wood silk produced by our machines opens up highly profitable markets for your business. It is widely demanded across multiple industries—from eco-friendly packing box stuffing and hygienic animal bedding to natural firelighters. Furthermore, it serves as the essential foundation for manufacturing acoustic sound insulation boards and fiberboards. With Guoyu machinery, you are not just buying a machine; you are investing in a versatile production line.
Ideal Wood Wool Solutions for Firelighter Production
Tap into the rapidly growing eco-friendly energy market by producing the perfect base material for natural firelighters. High-quality fire starters require wood wool with specific density and high surface area for optimal ignition. Our machines provide the ultra-thin precision needed to create loose, flammable strands that hold wax effectively. Whether you are producing fireplace starters or BBQ lighters, our technology ensures your raw material meets the highest commercial standards for burn time and reliability.
For Natural Firelighter Rolls
Produce long, continuous, and resilient strands that are easy to mechanical-roll or hand-weave. The Guoyu Wood Wool Machine maintains the integrity of the wood fiber, ensuring the final “nest” structure is sturdy enough for industrial wax dipping without falling apart, providing a premium look for retail packaging.
For Rapid-Ignition Grades
Engineered for maximum surface area coverage. By adjusting our machine to its finest settings (0.1mm – 0.3mm thickness), you can produce feather-light wood silk that catches fire instantly. This “flash-point” quality is essential for high-end biomass starters used in wood stoves and outdoor camping.
For High-Volume Biomass Starters
Scale your production with a consistent output of up to 150 KG/Hour. Our dual-log feeding system (Model 500-2) allows you to process low-cost softwoods like Pine and Poplar into high-value firelighter feedstock. Reduce your manufacturing costs while maintaining a 100% dust-free and eco-friendly product that eco-conscious consumers demand.
Why Choose SinoShred for Firelighter Wood Wool Production?
✅ Adjustable Micro-Thickness (0.1–1.0mm): Customize the excelsior size for different firelighter grades. Produce ultra-thin silk for rapid, instant ignition or thicker strands for longer-lasting burn times.
✅ Superior Wax Absorption Texture: Our precision mechanical shaving (not rough crushing) creates a high-surface-area texture that absorbs and holds paraffin wax perfectly, ensuring a high-quality final product.
✅ Clean & Resilient Fiber Strands: Unlike waste wood chips, our machine produces long, continuous strands that are easy to roll into “nests” without breaking, giving your firelighters a premium, professional look.
Types of Machine For Sale
GY3500-2 Wood Wool Machine
Processing Log Length:＜50cm
Max Processing Log Diameter: 35cm
Production Capacity: 1.2ton/8 hour
GY5550-4 Wood Wool Machine
Processing Log Length:＜50cm
Max Processing Log Diameter: 55cm
Production Capacity: 3ton/8 hour
Wood Wool Blade Sharpener
Max Grinding Length: 800mm
Max Upper Height of Grinding Wheel: 110mm
Grinding Angle: 28°, 35°, 90°
Grinding Axel Speed: 40-50 round/minute
Key Features
Achieve strict quality control for different industry standards by easily adjusting the output size. Whether your clients need ultra-fine wood silk for fragile wine packaging or thicker ribbons for robust acoustic boards, the machine adapts effortlessly. With a highly customizable output range—width from 1mm to 10mm and thickness from 0.1mm to 1mm—you can seamlessly switch between different product specifications and expand your market reach.
The core of the machine features a specialized cutting mechanism equipped with 1 Silk Knife and 1 Flat Knife working in tandem. Instead of rough crushing, this dual-blade configuration physically shaves the log stroke by stroke. This precision mechanical design ensures the natural wood fibers remain completely intact, producing continuous, resilient, and dust-free wood silk.
Built with a heavy-duty loading carriage designed to handle standard fresh logs with a length of 300-500mm. To maximize processing efficiency, the advanced 500-2 model is engineered with a widened feeding bay capable of accommodating two logs simultaneously (max diameter 160mm x 2). This structural upgrade instantly doubles the feeding efficiency per operational cycle.
Key Features
Dimensional Precision
Achieve strict quality control for different industry standards by easily adjusting the output size. Whether your clients need ultra-fine wood silk for fragile wine packaging or thicker ribbons for robust acoustic boards, the machine adapts effortlessly. With a highly customizable output range—width from 1mm to 10mm and thickness from 0.1mm to 1mm—you can seamlessly switch between different product specifications and expand your market reach.
Dual-Blade Cutting System
The core of the machine features a specialized cutting mechanism equipped with 1 Silk Knife and 1 Flat Knife working in tandem. Instead of rough crushing, this dual-blade configuration physically shaves the log stroke by stroke. This precision mechanical design ensures the natural wood fibers remain completely intact, producing continuous, resilient, and dust-free wood silk.
Double-Log Feeding Carriage
Built with a heavy-duty loading carriage designed to handle standard fresh logs with a length of 300-500mm. To maximize processing efficiency, the advanced 500-2 model is engineered with a widened feeding bay capable of accommodating two logs simultaneously (max diameter 160mm x 2). This structural upgrade instantly doubles the feeding efficiency per operational cycle.
Processable Wood Varieties

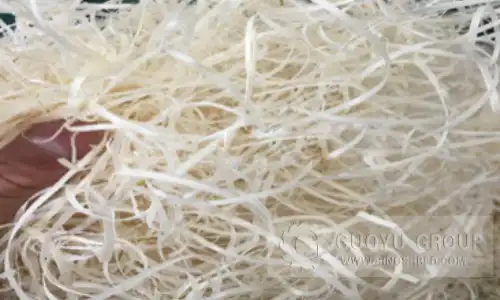

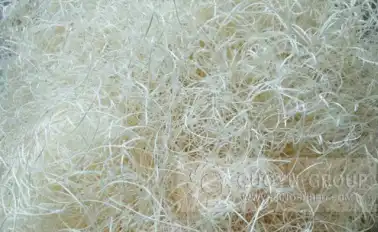

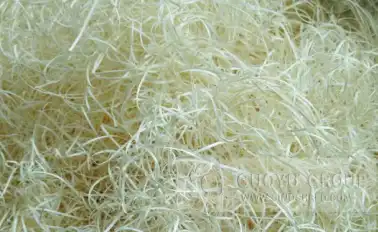

Output Display
Application Scenarios
Working Principle
Log Loading & Securing
Standard round logs (300-500mm in length) are placed into the machine’s heavy-duty feeding carriage. The automated mechanical system securely clamps the wood in place and provides constant downward pressure. This ensures the log remains completely stable during the high-speed shaving process. (Note: Model 500-2 allows two logs to be loaded simultaneously).
Dual-Blade Precision Shaving
This is the core of the process. As the log moves continuously across the cutting mechanism, it encounters two types of blades working in sequence. First, the Silk Knife deeply scores the surface of the wood to dictate the exact width of the strands (1-10mm). Immediately after, the Flat Knife cleanly slices the scored layer off to determine the thickness (0.1-1mm).
Continuous Excelsior Output
Through this continuous, reciprocating physical planing (not rough crushing), the solid wood is rapidly transformed into long, uniform strands. Because the cutting action respects the natural grain of the wood, the resulting wood wool retains its full fiber strength and elasticity, dropping directly into the collection area ready for immediate use.

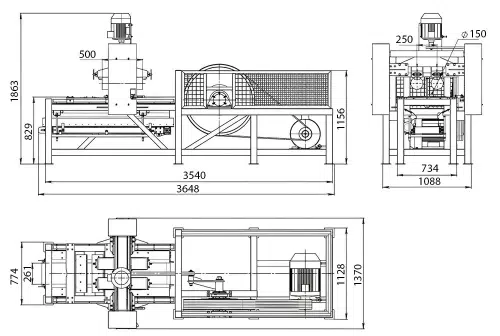

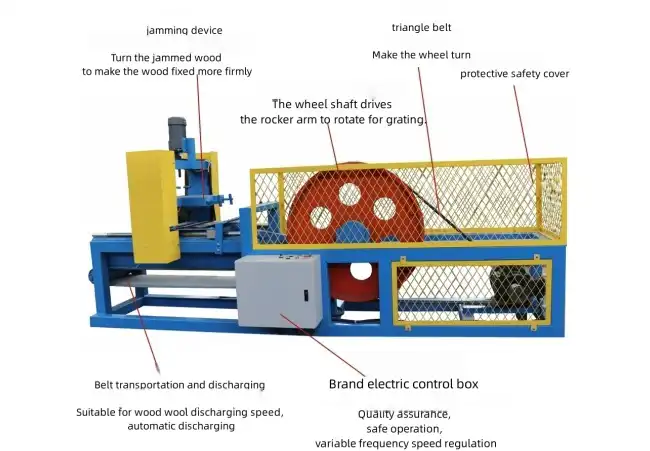

Product Structure
| Technical Aspect | Functional Advantage |
| Precision Dual-Knife Configuration | Synchronizes fiber scoring and shaving to produce uniform, high-resilience strands with intact wood structure. |
| Calibrated Dimensional Tuning | Enables precise control over output width (1-10mm) and thickness (0.1-1mm) to meet strict industry standards. |
| Tri-Motor Independent Drive | Segregates cutting and feeding power to maintain high-torque stability and prevent stalling during heavy-duty log processing. |
| Automated Reciprocating Feed | Maintains continuous log throughput with constant pressure, ensuring maximum fiber yield and minimal material waste. |
Core Advantages

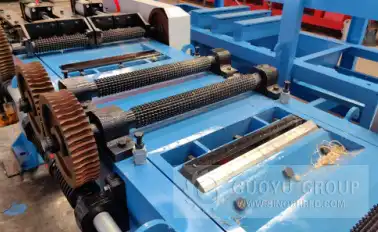

Cutting System: Precision Shaving Configuration
At the core of the equipment is a highly configurable mechanical shaving unit. It utilizes a synchronized combination of specialized Silk Knives (for width scoring) and Flat Knives (for thickness slicing). Operators can precisely dial in the output dimensions, achieving an adjustable width from 1mm to 10mm and a thickness from 0.1mm to 1mm. This physical cutting approach ensures the natural wood fibers remain completely intact and dust-free.
Feeding Carriage: High-Capacity Log Intake
Engineered to accommodate standard fresh timber, the heavy-duty loading carriage supports log lengths ranging from 300mm to 500mm. To maximize daily throughput, the advanced 500-2 model features a widened feeding track specifically designed for simultaneous double-log processing (Max diameter 160mm × 2). This structural optimization effectively doubles the material intake per cycle, boosting the capacity up to 150 KG/Hour.

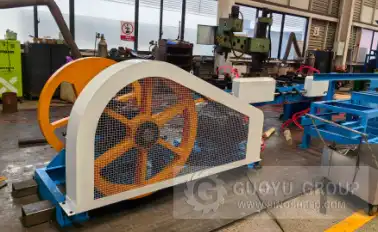

Drive & Transmission: Independent Motor Architecture
To maintain constant torque during intensive industrial processing, the machine employs a segregated power setup. A powerful primary motor (up to 15KW) drives the heavy cutting action, while dual auxiliary motors (0.75KW × 2) manage the automated carriage movement. The entire transmission is stabilized by industrial-grade components, including FL 204 bearings, one-way bearings, and high-tension V-Belts, ensuring jam-free operation under heavy loads.
Maintenance Toolkit: In-House Blade Sharpening
To minimize downtime and slash operational costs, we provide a dedicated Wood Wool Blade Sharpener perfectly paired with the main machine. Powered by a highly efficient 0.37KW motor, this auxiliary equipment supports a maximum grinding length of 800mm and allows exact grinding angle adjustments (28°, 35°, and 90°). This allows operators to maintain razor-sharp blades on-site, eliminating reliance on expensive third-party sharpening services.
Technical Specifications
Specifications of Wood Wool Machines
| Technical Parameters | GY3550-2 | GY5550-4 |
| Total power | (18.5+1.5)KW | (37+1.5)KW |
| Processing Log Length | ＜50cm | ＜50cm |
| Max. Processing Log Diameter | 35cm | 55cm |
| Excelsior Length | 300～500mm(adjustable) | 300～500mm(adjustable) |
| Excelsior Width | 1～3mm(adjustable) | 1～3mm(adjustable) |
| Excelsior Thickness | 0.02～0.05mm(adjustable) | 0.02～0.05mm(adjustable) |
| Production Capacity | 1.2 ton/8 hour | 3 ton/8 hour |
| Overall Dimension | 5700×1500×1200mm | 8000×1900×1300mm |
| Weight | 2100kg | 4100kg |
Specifications of Wood Wool Blade Sharpener
| Max Grinding Length | 800MM |
| Max Upper Height Of Grinding Wheel | 110MM |
| Grinding Axle Speed | 40-50 Round/Minute |
| Grinding Angle | 28°，35°，90° |
| 3 Phase Motor Power | 0.37KW 1400R/Min |
| Weight | 180KG |
| Overall Size | 1200*650*1150MM |

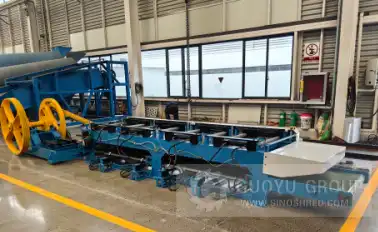

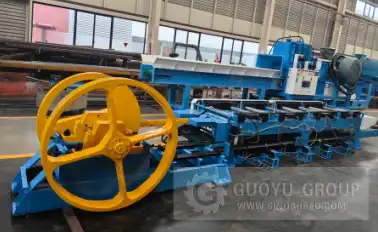

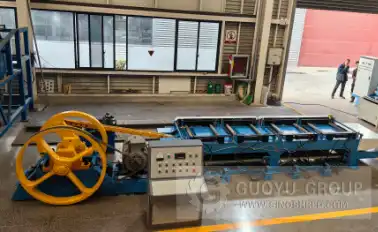

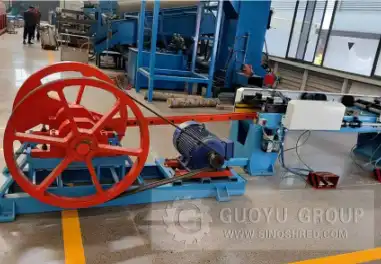

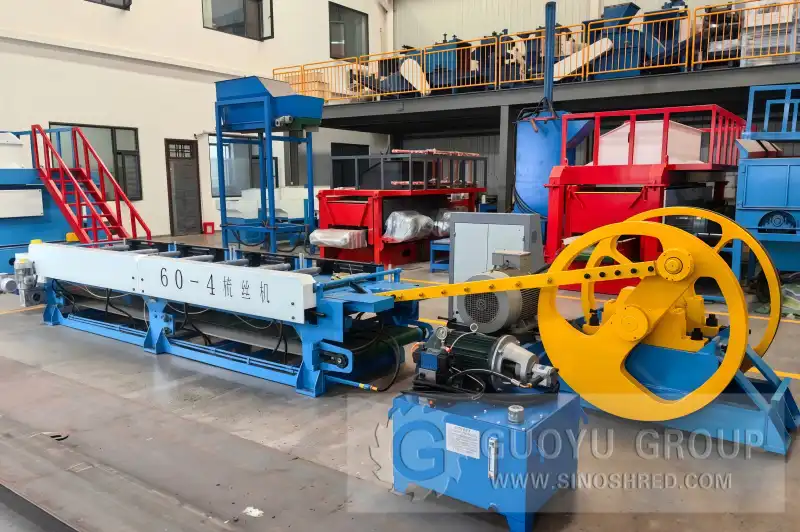

Product Display
Why Choose Guoyu Machinery
- Commercial-Grade Durability:
Unlike light-duty alternatives, Guoyu wood wool machines are engineered specifically for continuous, high-intensity commercial manufacturing. We stabilize the core transmission using premium industrial components—including heavy-duty Slide Bearings, precision One-Way Bearings, and reinforced FL 204 Bearings. Paired with our robust multi-motor architecture (up to 16.5KW total power), this rugged construction eliminates excessive vibration, prevents stalling, and maximizes the machine’s operational lifespan under heavy loads.
- Profit-Driven Production Design:
We build equipment designed to maximize your profit margins. The advanced Model 500-2 features an innovative double-log processing carriage, allowing you to instantly double your hourly throughput (up to 150 KG/h) without increasing labor costs. Furthermore, by integrating our dedicated Wood Wool Blade Sharpener into your workflow, you completely eliminate expensive third-party sharpening fees. This self-sufficiency drastically lowers your cost-per-kilogram and accelerates your Return on Investment (ROI).
- Transparent Maintenance & Support:
Operate with complete confidence and zero hidden costs. Guoyu provides highly predictable maintenance with fully transparent, factory-direct pricing on all consumables:
- Cost-Effective Consumables: Affordable standardized replacement blades (Silk Knives and Flat Knives) directly from our factory.
- Low-Cost Standardized Parts: Easy access to universal structural spares (e.g., V-Belts and Limit Switches priced under $60) to keep running costs extremely low.
- Expert Calibration Guidance: Direct technical support to help your operators master blade angle adjustments for perfect wood silk output.
